Custom aluminum extrusion workbench options

Every option below is in the configurator with live pricing. Mix and match, and the price and 3D preview update as you go.

Size
Any size, to the 1/8″
Width 12–72″, depth 12–48″, working height 18–42″. Add shelves below, spaced evenly.
Surface
ABS or aluminum plate
¼″, ⅜″, or ½″ thick. ABS for general work; aluminum plate for heavy parts and fixtures.
Mobility
Locking casters
Swap the standard leveling feet for casters. Overall height stays what you set.
Height adjust
Hand-crank hydraulic lift
Four hydraulic cylinders raise the work surface 4–18″, worked by a crank on the side. No power needed.
Back panel
Pegboard or dry-erase
A 6–32″ riser at the back, with pegboard for tools or a magnetic whiteboard for work instructions.
Lighting
Overhead LED task light
24″ LED bars on cantilever arms, one per 24″ of width, set as far forward over the surface as you want.
Storage
Parts bin rails
Up to three rails of small or large bins on the riser, kept within the operator's reach.
Lead time
Rush assembly
Jump the queue and ship in about 5–7 business days instead of the standard 2–3 weeks.
Workstation with pegboard riser, parts bins and LED task light
How it's built

Industrial hardware, not furniture.

  • 1.5″ × 1.5″ T-slot aluminum extrusion frame
  • 5-hole corner brackets at every joint, two per corner on each level
  • Mid-span supports so no surface spans more than 30″ unsupported
  • Leg stretchers on single-level tables for a rigid frame
  • 5-year structural frame warranty, 1-year surface warranty
Custom work

Need something that isn't in the configurator?

The T-slot frame takes almost anything. Send a sketch or a description and we'll quote it.

  • Sizes outside the configurator's range
  • Several matching stations for a line or cell

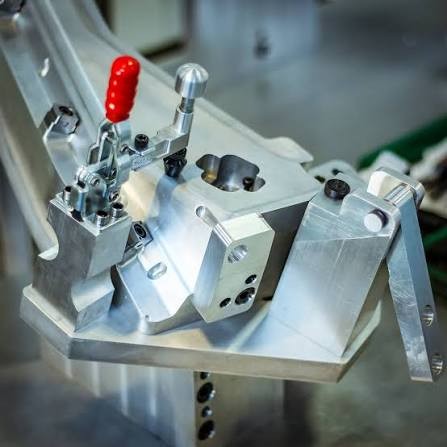

  • Part fixtures, tool holders, and monitor mounts

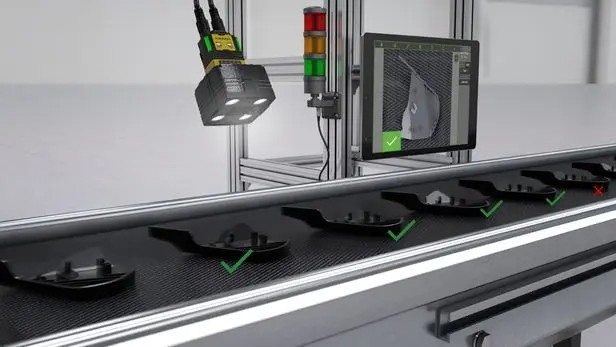

  • Sensor or camera brackets on the frame
Send us your spec →

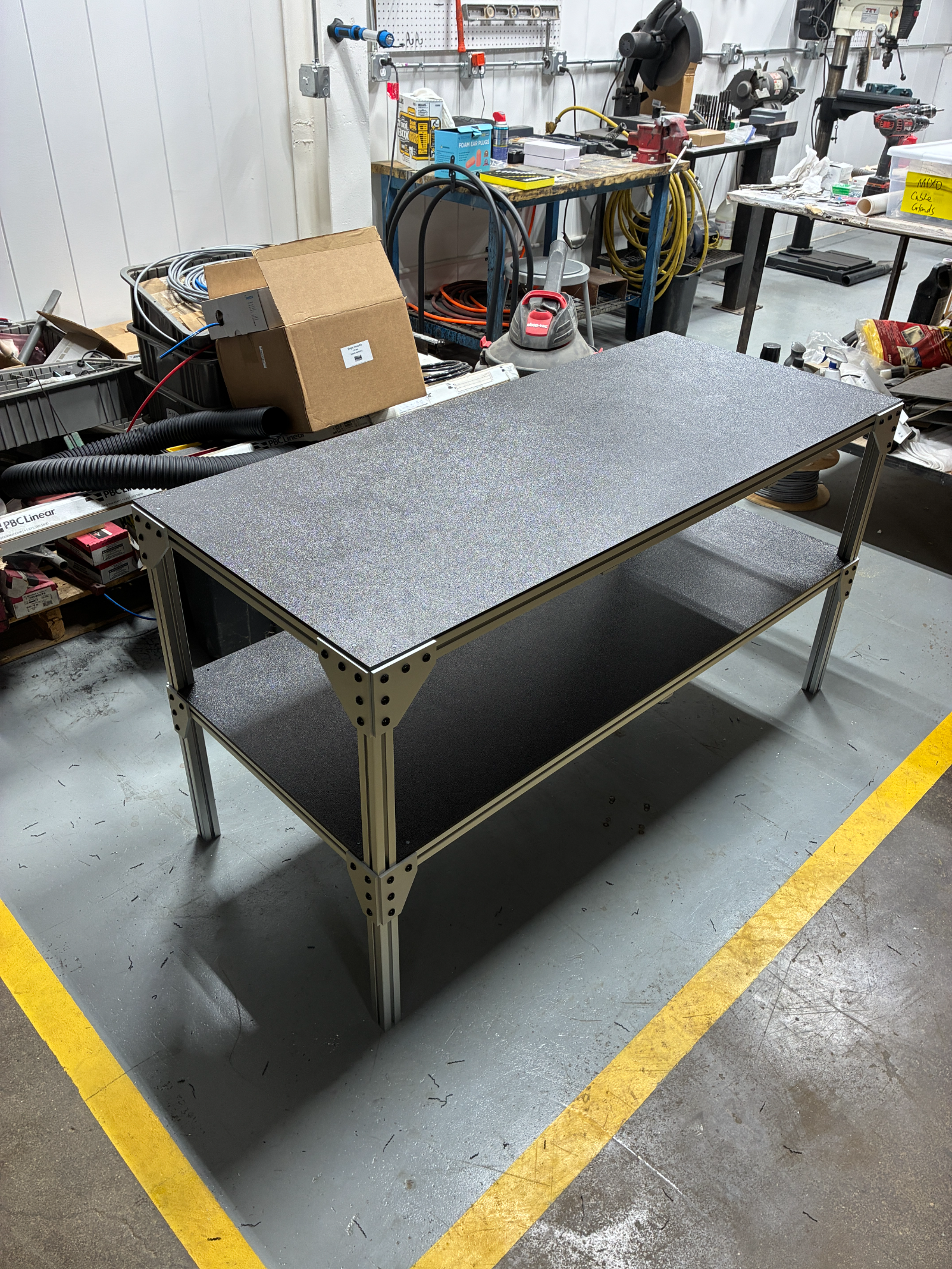

A High Grade Systems extrusion table
Popular builds
Build yours and see the price.
Pay by card, or request a formal quote for your PO.
